DENALI DR1 2.0 TriOptic LED Light Kit With DataDim Technology

With Full Wiring Harness & M8 Mount

Denali DR1 LED Lights are small & light with an effective beam distance of 300 metres, these little buggers are BRIGHT!

SKU: DNL.DR1.10000
$590.00
In Stock

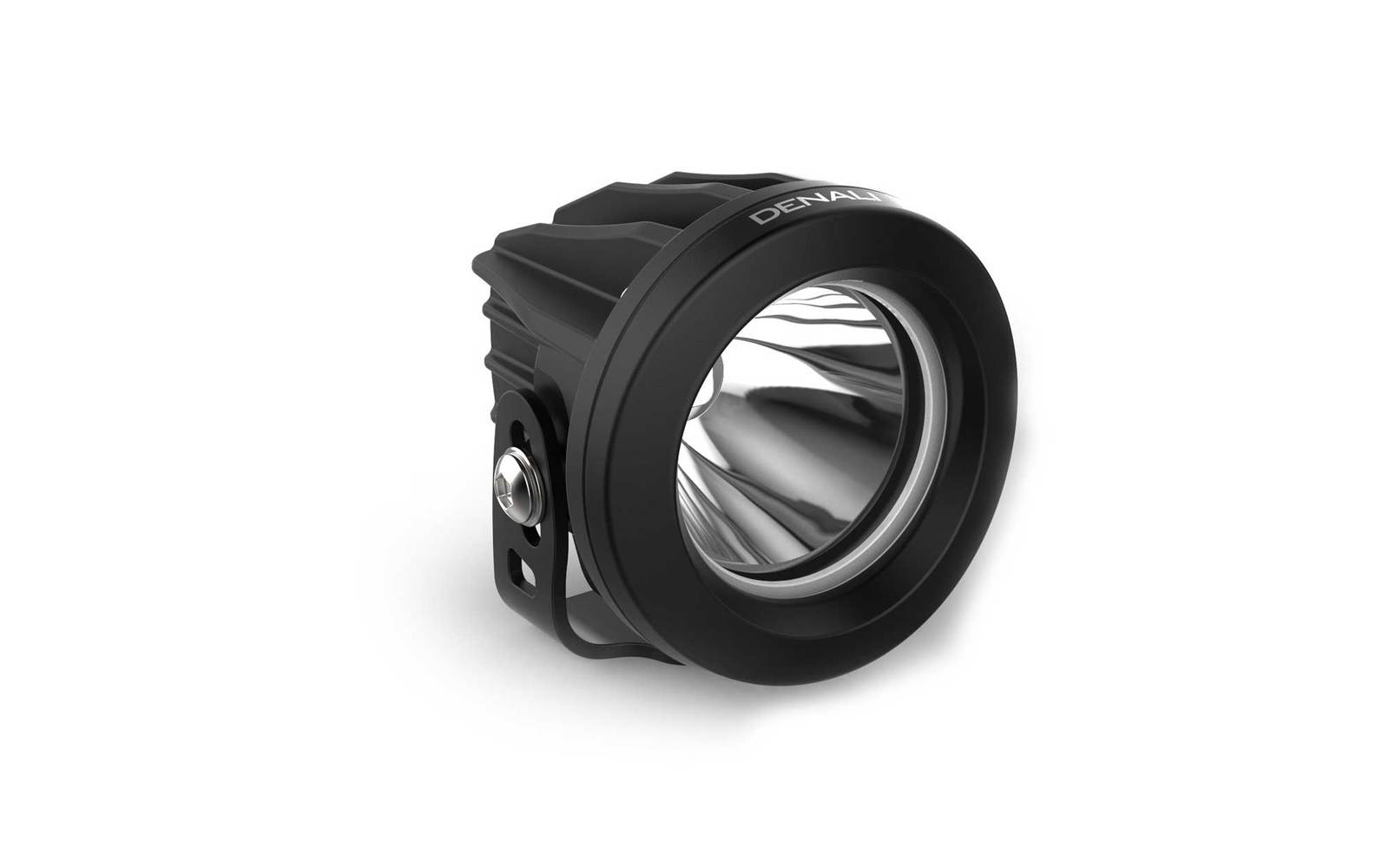

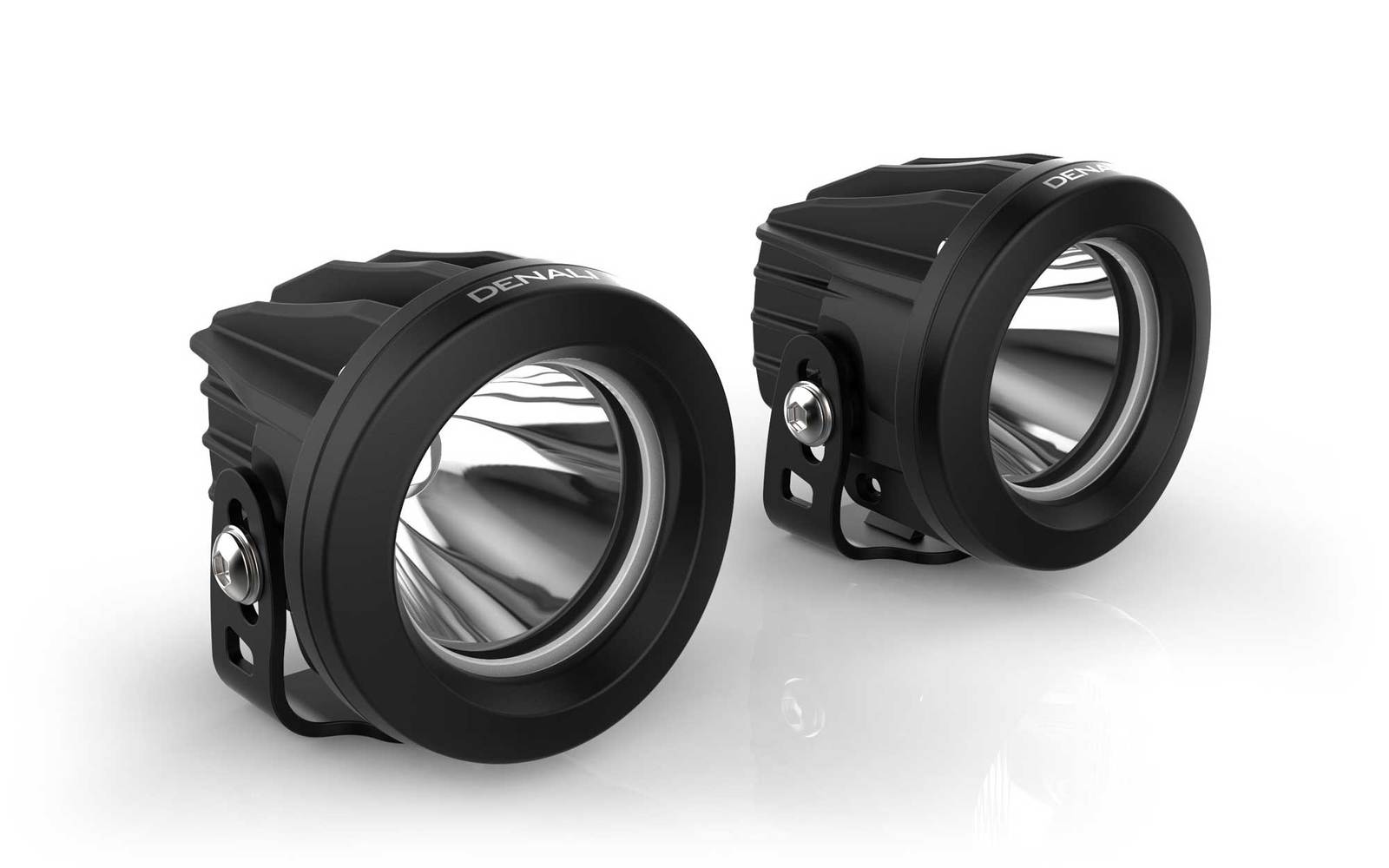

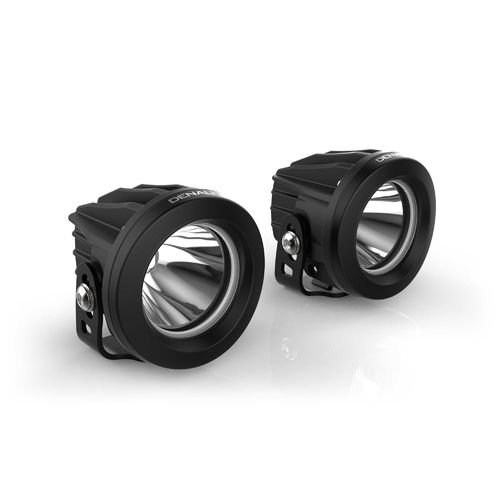

The DENALI DR1 2.0 LED TriOptic™ LED light kit with DataDim technology is the perfect choice for the demanding adventure or sport-touring rider looking for the greatest illumination distance. With a powerful 10-watt Cree LED and a large reflector, the DENALI DR1 casts a powerful beam 1000ft down the road. With attractive aluminum pods that are only 3.7in in diameter and 3.8in deep, the DR1 set features a durable black powder-coated finish and special cooling fins to make sure the LED itself runs cool and bright.

New for the DENALI 2.0 series is a special Impact PC™ corrosion proof bezel that ensures your lights will continue to look great even after repeated stone and debris impacts. Low profile hinge mounts offer secure mounting and include stainless steel M8 mounting hardware for installation on light bars or model specific light mounts. Because of its size, the DR1 is recommended for use with sturdy crash bars or other engine-protection devices, or with DENALI’s quickly growing line of bike-specific mounts.

Like the other lights in the DENALI 2.0 lineup, the DR1 kit uses a new HotSwap™ modular wiring harness that, by default, causes these lights to function at full brightness. But if you would like them to operate at both half and full power, simply add the dual intensity DataDim™ controller. No other changes are required except to replace the original relay with the DataDim™ module and connect one wire to the high-beam circuit. (You can also purchase a three-position switch to manually control light intensity independent of the bike’s high beam.)

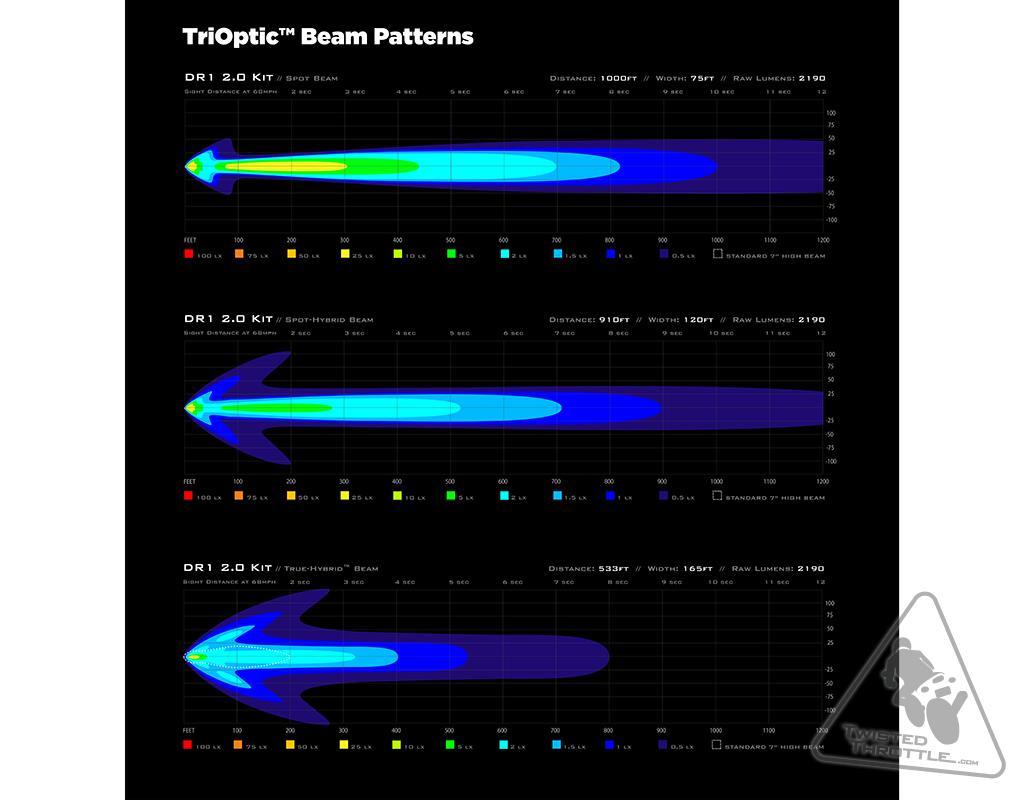

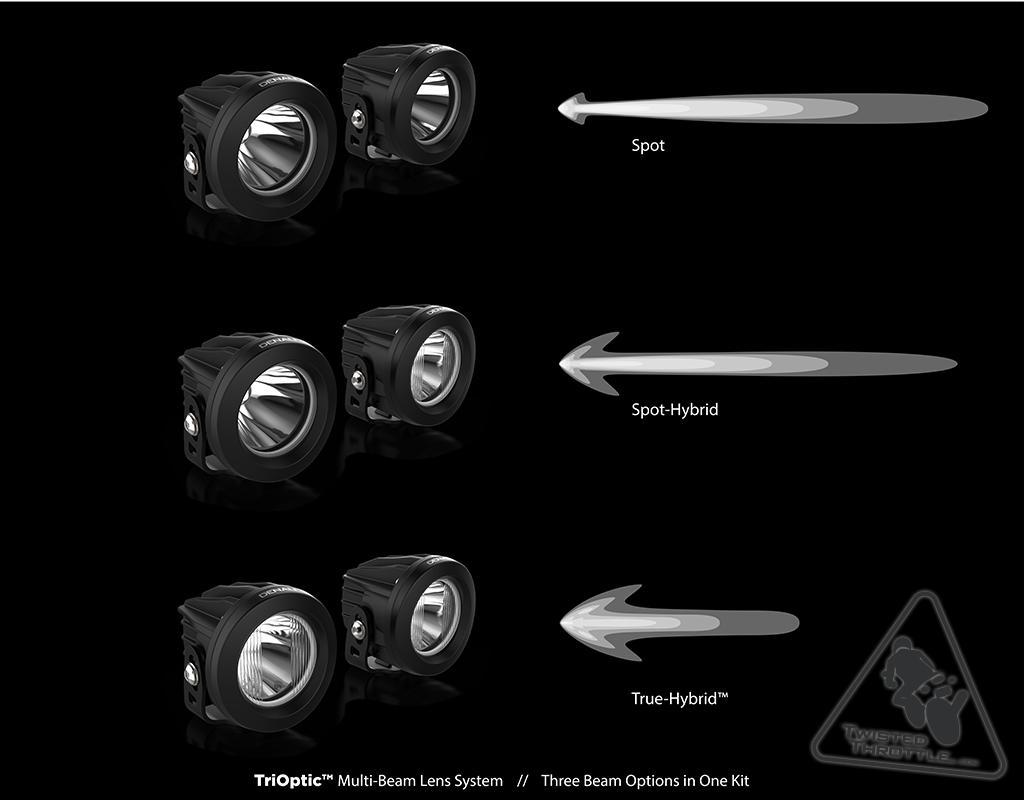

Also new with the DENALI 2.0 generation of lighting is the industry-leading TriOptic™ lens system. Each lamp comes with both spot and True-Hybrid™ lenses in the box, nothing else to buy. The spot lens produces the greatest beam distance, while the True-Hybrid™ lens produces a broader spread of light closer to the motorcycle, filling the road edge and shoulders. This lens splits the difference between a normal spot and a conventional flood pattern, giving you the best of both worlds. And for even more flexibility, you can install just one of the True-Hybrid™ lenses to retain a little more distance coverage. The True-Hybrid™ lenses are E-Marked to be road legal in countries where this is a requirement. No matter which lens you choose, the DR1 2.0 light kit lets you see the road (or lack thereof) and be seen by other traffic around you. Enjoy the darkness with DENALI!

DENALI DR1 2.0 LED TriOptic™ LED  Specifications:

  • LEDs: 10 watt Cree XPL HI (per lamp)
  • Power Draw: 1.6 amps total
  • Beam Distance (spot): 1000ft
  • Beam Width (spot): 75ft
  • Raw Lumens: 2190
  • Intensity: Single Intensity Harness
  • DataDim™ Compatible: yes
  • Operating Voltage: 12v
  • Pod Size 3.7in diameter x 3.8in deep

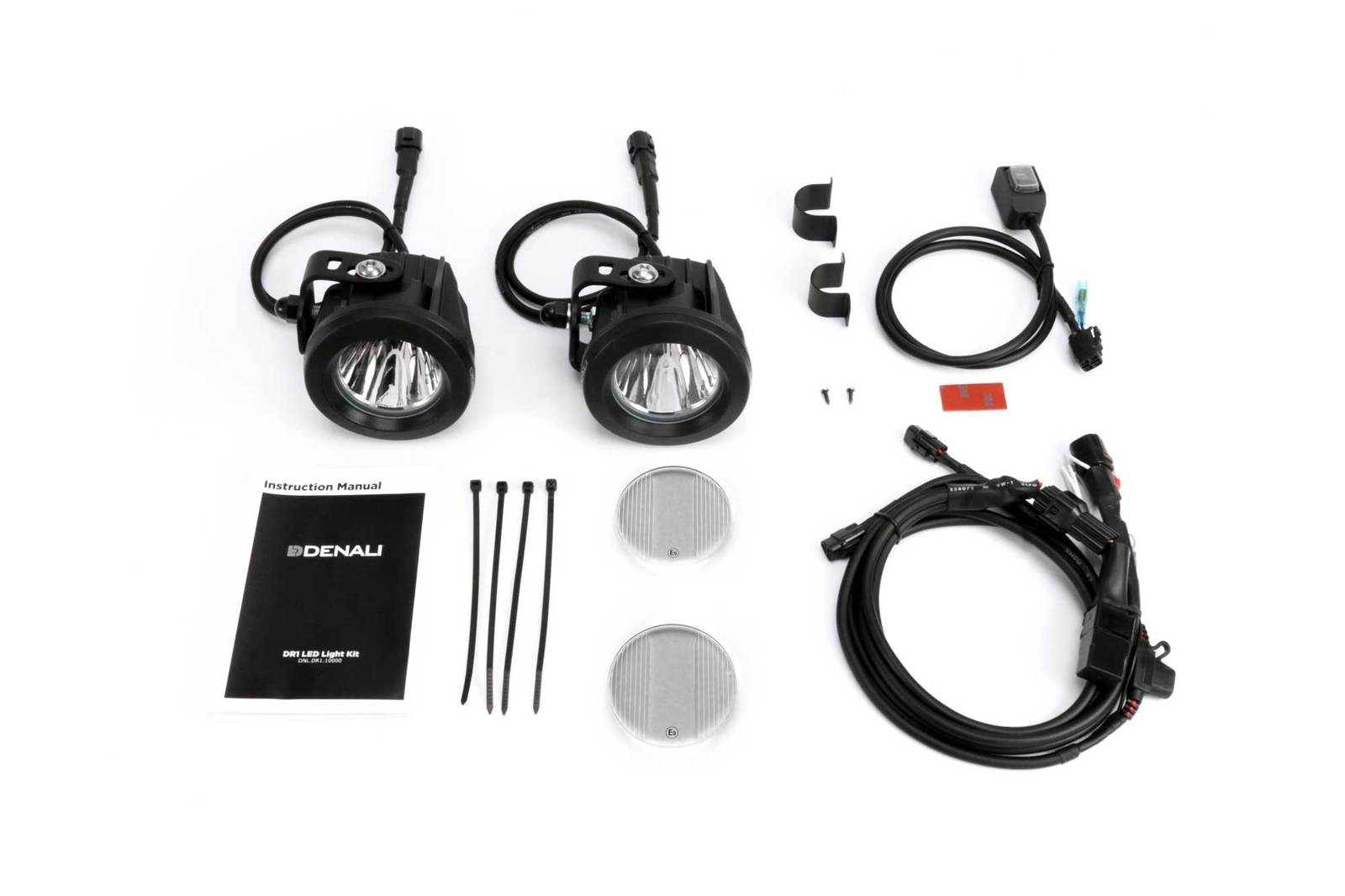

DR1 LED Light Kit Contents:

  • (2) LED Light Pods
  • (2) Spot lenses (pre-installed)
  • (2) E-Mark approved True-Hybrid™ lenses
  • (1) HotSwap™ single intensity wiring harness with the capability of a plug-and-play hot swap to dual intensity without changing the harness itself
  • (1) DrySeal™ waterproof illuminated switch
  • (1) 7/8in handlebar switch mount
  • (1) 1in handlebar switch mount
  • (2) hinge mounts with M8 stainless steel hardware
  • (4) Zip ties & (1) adhesive mounting square

(DNL.DR1.10000)
