Denali Horn Mount to fit Denali SoundBomb Compact Dual-Tone Air Horn to the Suzuki DL650 V-Strom (2004-2016) & DL1000 V-Strom (2002-2012)

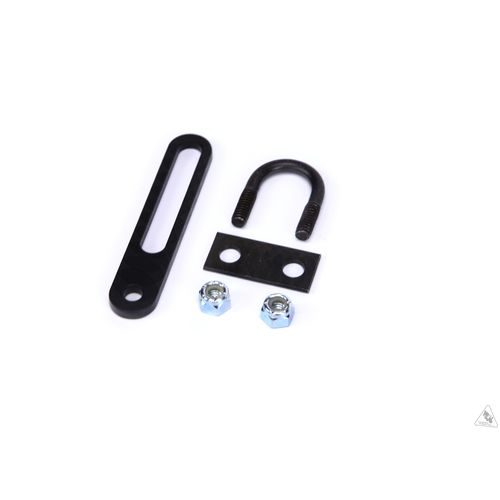

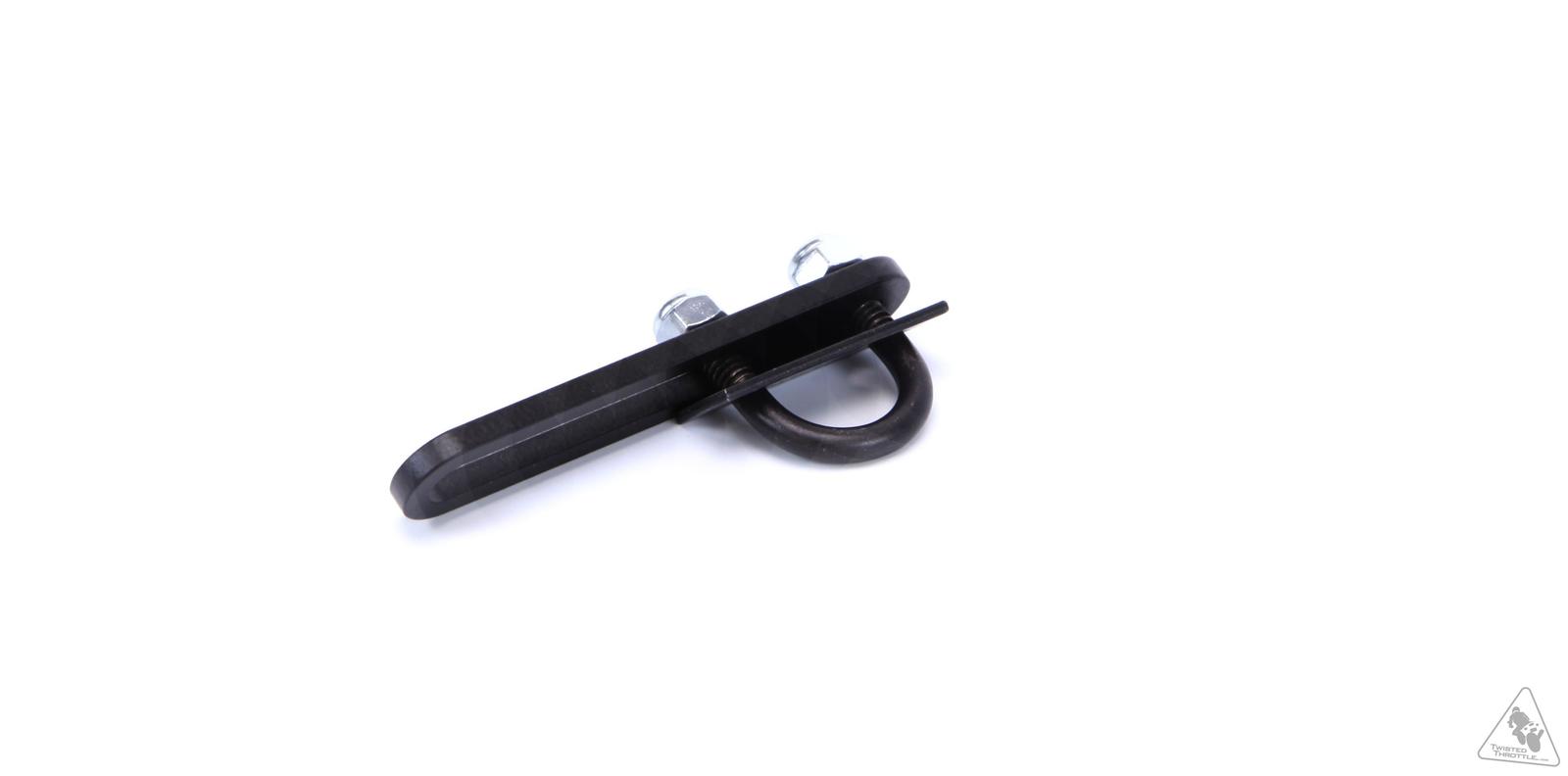

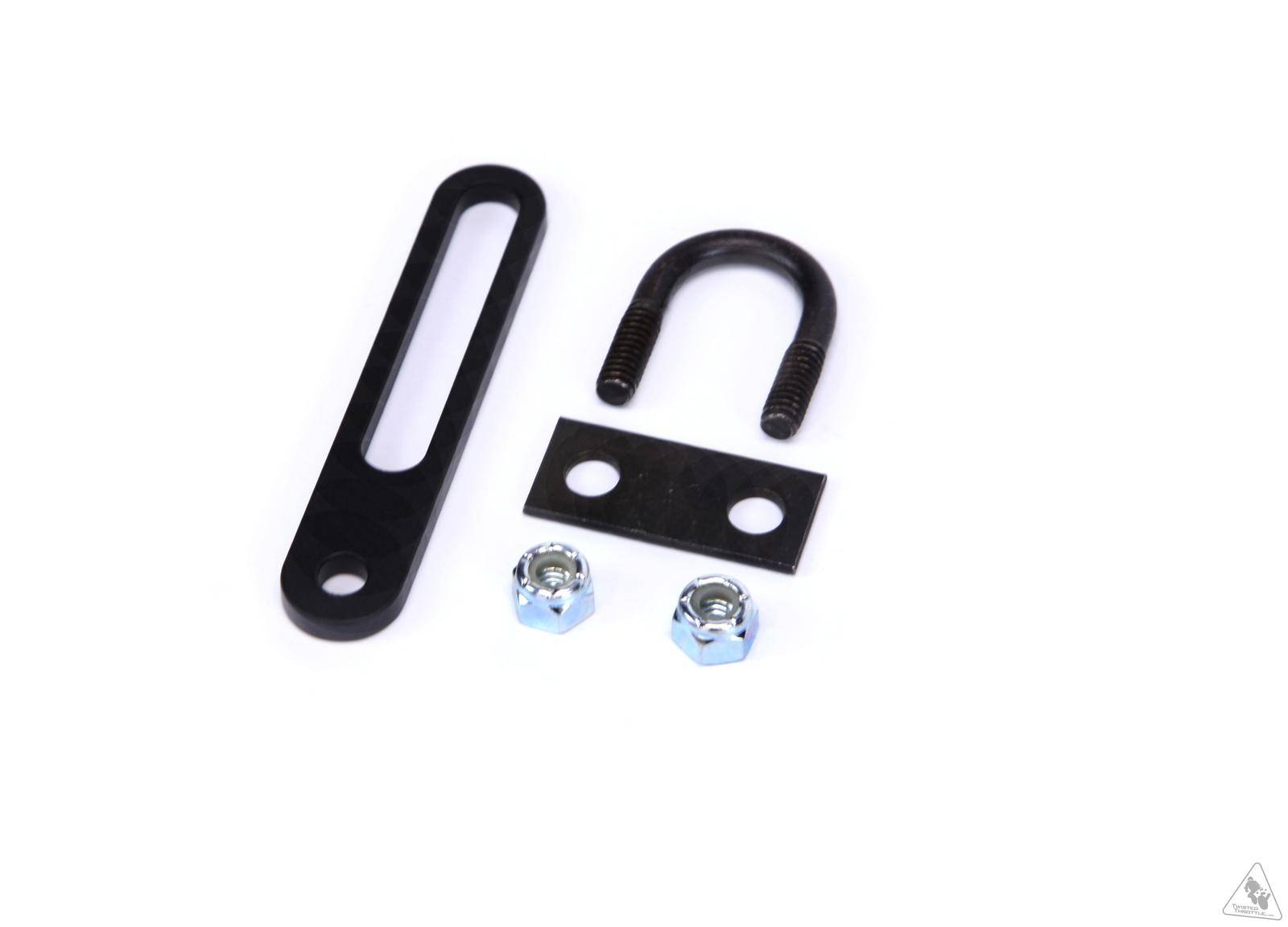

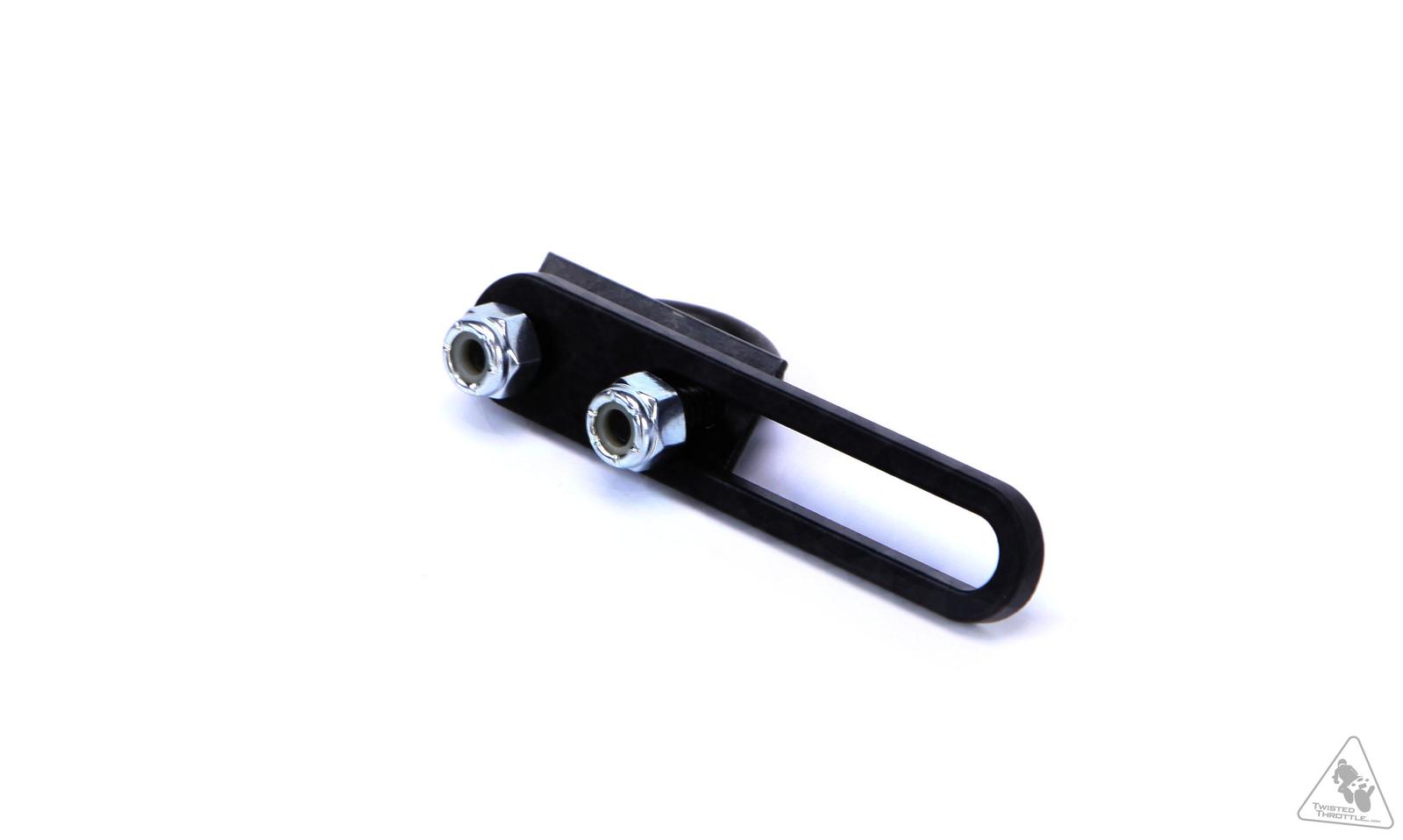

The Denali Horn Mount for the Suzuki DL650 V-Strom (2004-2016) & DL1000 V-Strom (2002-2012) consists of a Slotted Bracket, a U-Bolt and Nylock nuts to mount the Denali SoundBomb to the right upright of the tubular fairing stay.

In Stock
NOW $23.85
RRP $26.50 SAVE 10%!
Sale Ends in
03:00 am, 28 January 2020

SKU: HMT.05.10100

Denali has put together this complete mounting solution for your Suzuki DL650 V-Strom (2004-2016) or DL1000 V-Strom (2002-2012). It consists of a Slotted Bracket, a U-Bolt and Nylock nuts to mount the Stebel Air Horn or Denali SoundBomb to the right upright of the tubular fairing stay. You do not need to remove the fairing to access this location. This horn mounting bracket may work with other applications on a round pipe ranging from 17mm to 19mm.



Horn Bracket Mounting Instructions

Step 1: Locate the RIGHT front fairing stay near the RIGHT fork. This can be accessed from the top without removing any bodywork.




Step 2: Place the U-bolt and the Backing Plate around the fairing stay.  Place the Slotted Bracket onto the end of the U-bolt, tighten the Nylock nuts. Do not tighten them completely so that you can make adjustments once the horn is installed.

Step 2 - Stebel Horn Mount for the DL650 V-Strom '04-'13, DL1000 '02-'12


Step 3: Install the horn. Be sure to read the mounting instructions included with the horn. Keep the Denali SoundBomb Horn within the 15 degree operating parameters listed in the instructions [included].

Step 3 - Stebel Horn Mount for the DL650 V-Strom '04-'13, DL1000 '02-'12

About Denali:

Our Denali LED lights are specifically engineered to provide maximum brightness with minimum power draw from your motorcycle. The Denali LED driving light lineup has the right light option for your bike and your riding style, at the right price!

View more Denali products

(HMT.05.10100)
