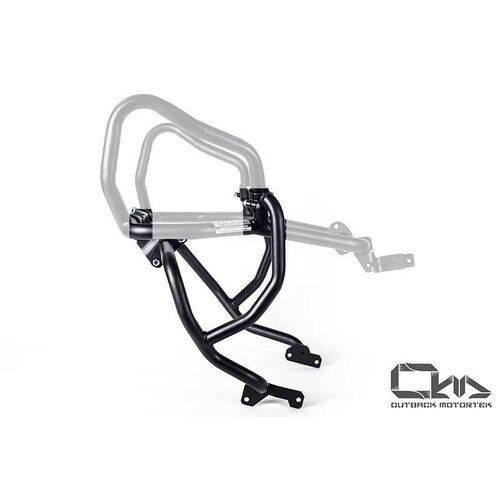

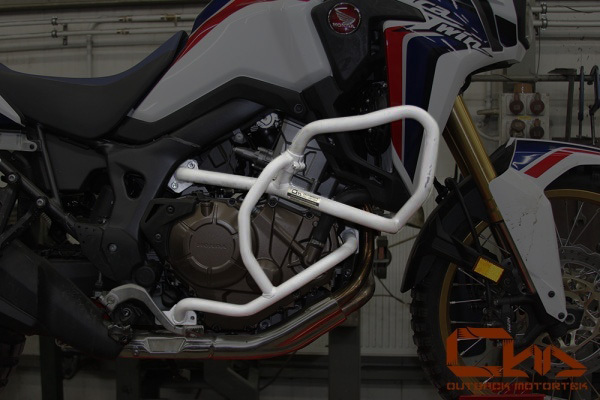

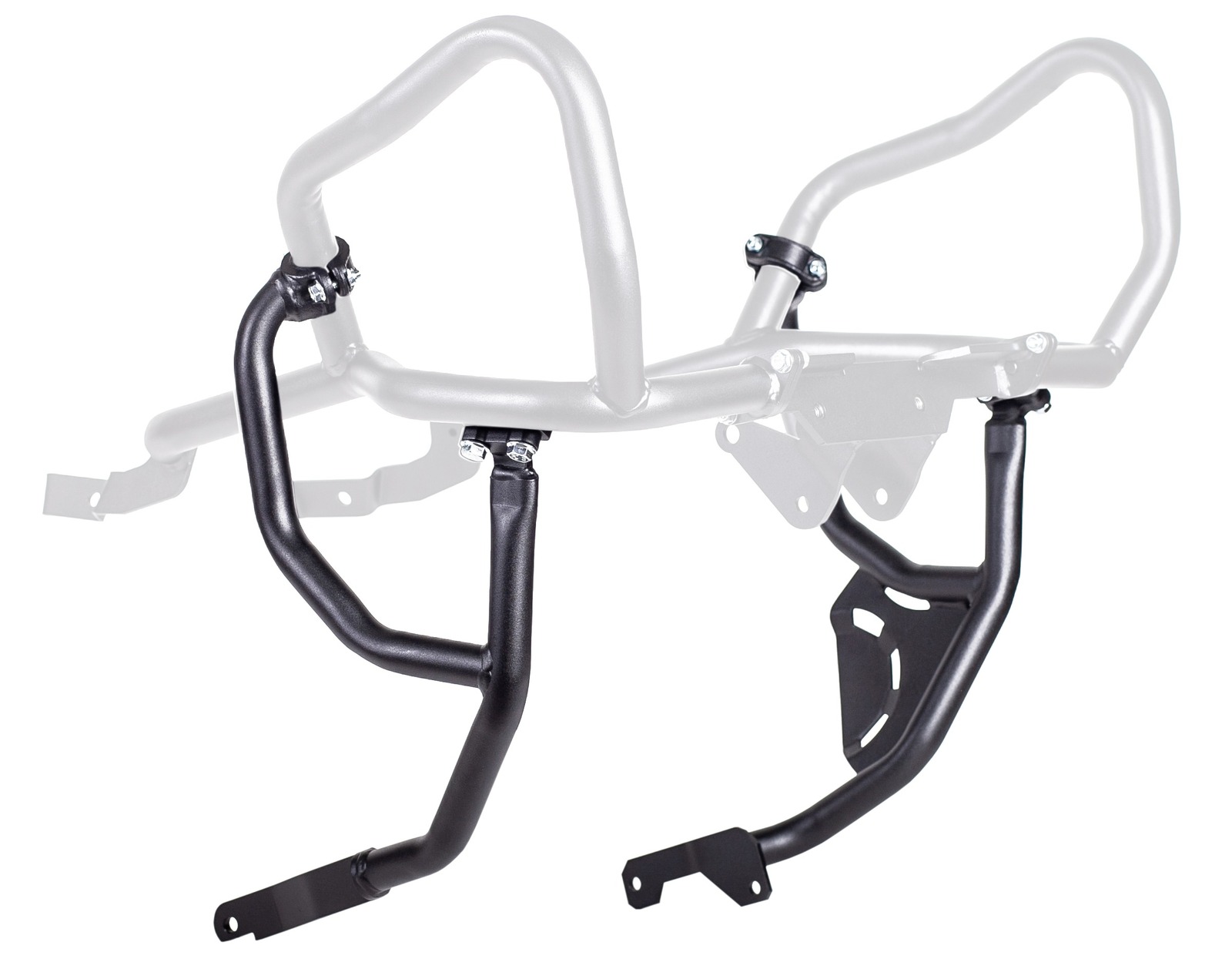

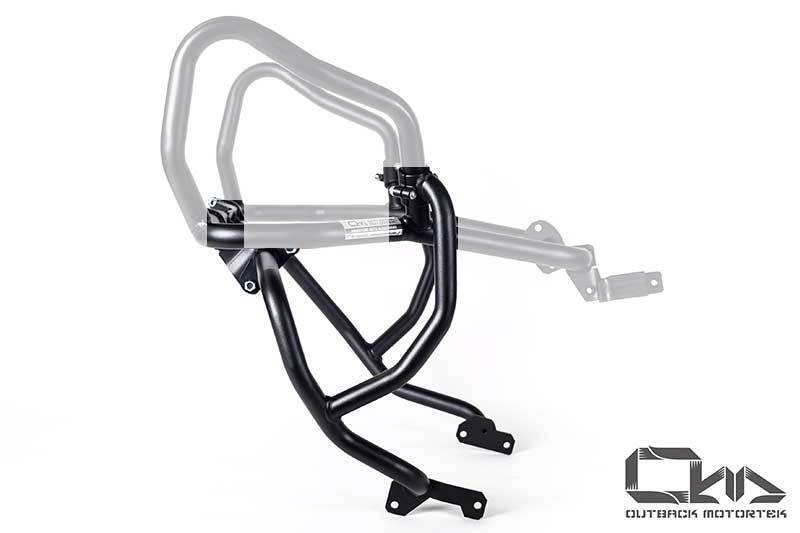

Right off the bat, you can see that it’s more than just an engine guard. The 27mm diameter reinforcement bar ties the engine guard and the crash bars together, increasing the strength of the overall system. This design allows for even large impacts to be distributed throughout the entire system, minimizing damage to the bike’s engine, frame and other vital components.

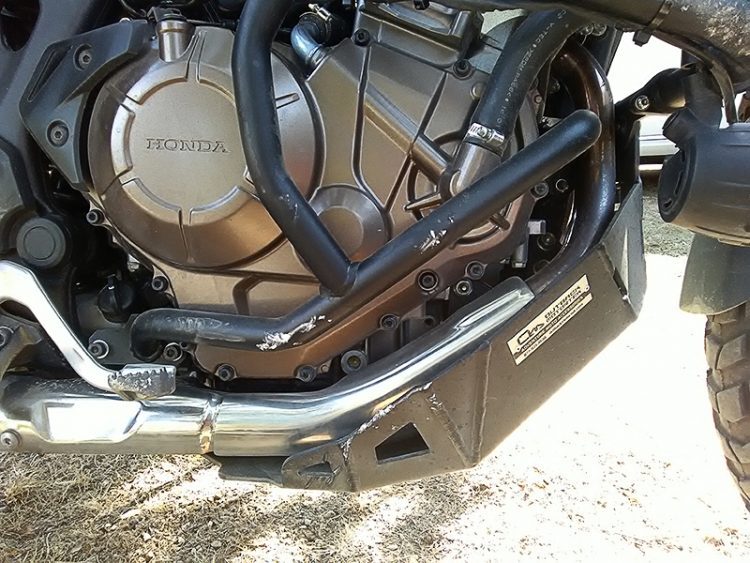

The engine guards are secured entirely onto the frame using 4 and 5mm steel tabs, knowing that the engine cases are the most exposed in all tip-overs, we designed these for maximum strength.
- Engine Case Protection – entirely frame mounted, thus the fragile engine is not exposed to forces transferred to it due to crash impact
- Crash Bars Reinforcement – the engine guard is tied into the crash bars through a reinforcement bar.
- 27mm diameter tubing – handles the weight of the bike under impact (crash)
- Sandblasted and powder coated surface – simple and tough coating that lasts
Engine Case Guard: 2016 / 2017 / 2018 / 2019 standard and 2018 / 2019 Adventure Sports. One engine guards for all models. Only specify transmission type (DCT or Manual).
Select your bike in the link below for Video Installations
Select your bike in the link below for PDF Installations
Outback Motortek Engine Case Guard For HONDA CRF1000L/ADV Manual is available in the following colour options:
- Silver (out of stock)
About Outback Motortek:
Shop Outback Motortek, protection and luggage solutions. The ultimate in tested and proven, adventure and dual sport motorcycle accessories. Designed and manufactured by real riders who drop test and torture these crash bars and engine guards on their own bikes in real-life scenarios. When buying Outback Motortek, rest assured that they offer the highest level of protection for your bike.
Fits the following bikes:
